Product Description

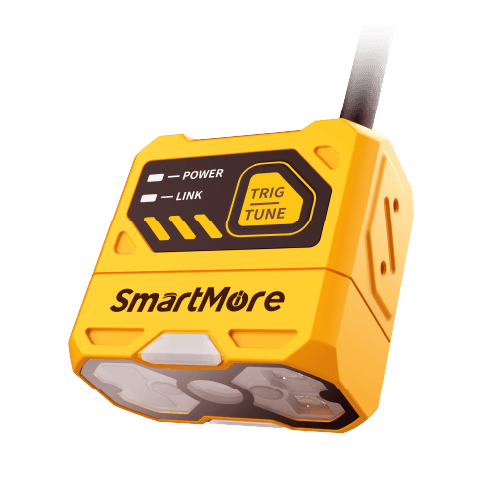

The SMore VS800P is a compact high-performance ID reader engineered for reliable, high-speed decoding in space-constrained equipment. Featuring a liquid lens for millisecond-level autofocus, it delivers fast, precise focusing and consistently sharp image capture. Powered by SmartMore’s proprietary deep-learning decoding technology, the VS800P provides fast, stable reading performance in demanding applications. Its compact design allows easy integration into a wide range of machines, including LDI exposure systems, ABF lamination equipment, wafer inspection systems, bonding equipment, and deposition tools. Designed for flexible installation in ultra-compact spaces, the VS800P delivers a flexible, stable, and high-speed code reading solution for advanced industrial applications.

Product features

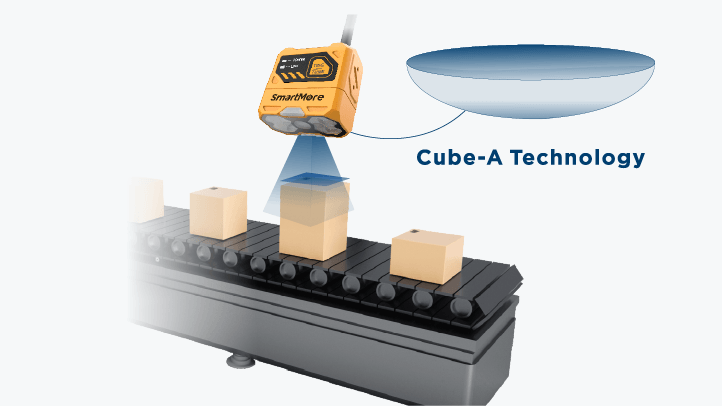

Achieve Fast, Accurate Focus with Liquid Lens Technology

The VS800P features a liquid lens combined with SmartMore’s proprietary Cube-A Technology focusing algorithm, enabling millisecond-level focus adjustment in a single operation. This helps maintain fast, precise focusing in applications where speed and accuracy are critical.

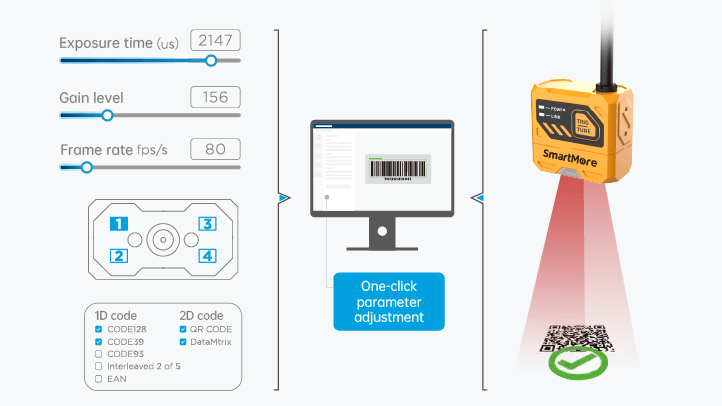

Simplify Setup with One-Click Intelligent Tuning

Press the Tune button on the reader to automatically adjust focus, exposure, gain, lighting, and symbology search for different conditions such as bright-field and dark-field applications. This greatly simplifies setup, reduces adjustment time, and allows users to start quickly with minimal training.

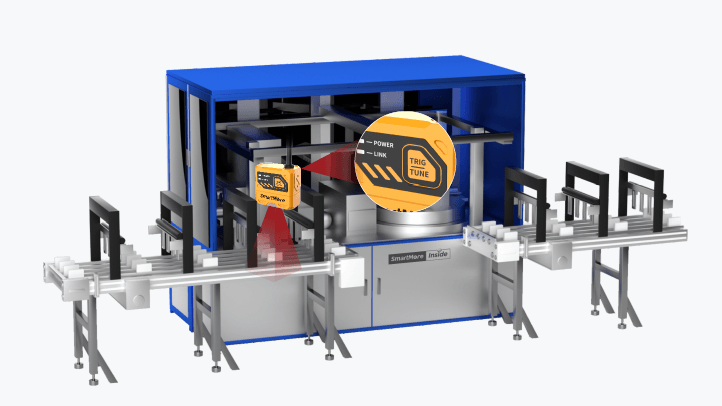

Install Easily in Tight Spaces

With a compact housing measuring 47 mm × 25 mm × 43 mm, the VS800P can be installed even in highly restricted spaces. Built-in four-LED illumination and dual green aiming indicators make it easy to identify the reading area and support fast installation and setup.

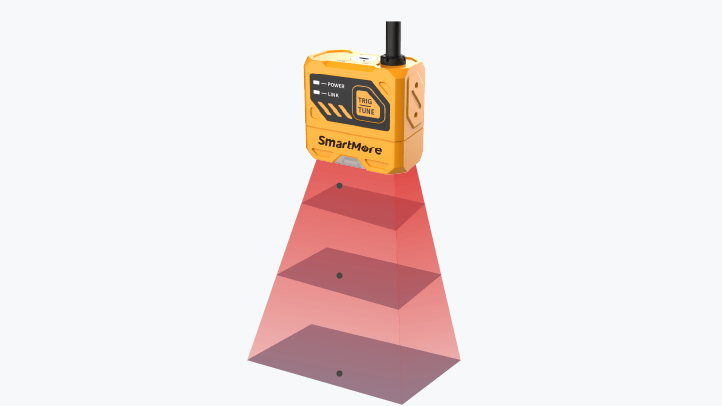

Support a Wide Range of Working Distances

The VS800P supports working distances from 30 mm to 300 mm, covering the most common code reading applications on the market. Its 6 mm liquid lens provides greater flexibility across different installation conditions and reading tasks.

Apply Immediately
